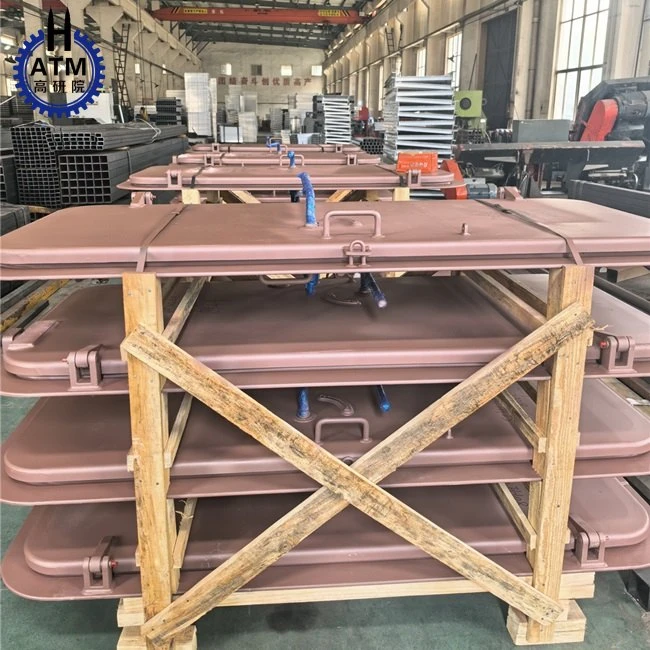

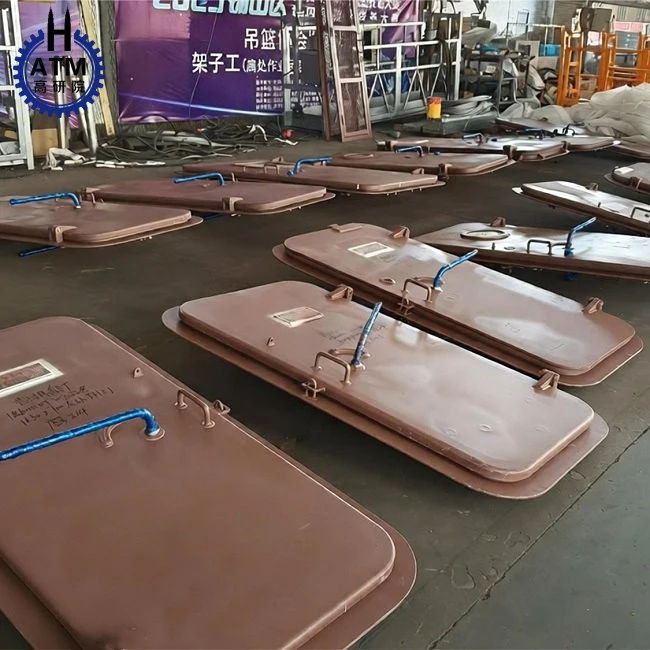

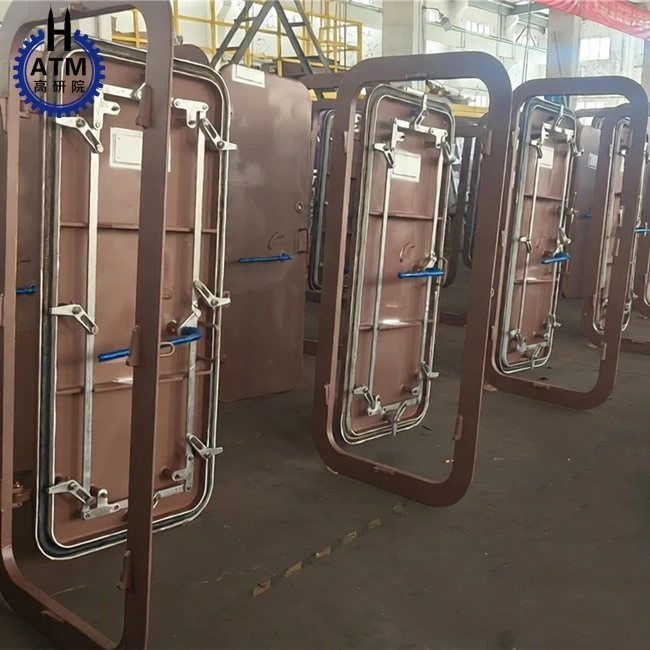

Marine Hinged Weathertight Or Watertight Door
Marine hinged door includes marine weathertight door & marine watertight door, widely adopted on vessels, offshore platforms & wind service vessels. It isolates wind, rain, and seawater, maintaining compartment integrity against a marine corrosive environment. Manual operation standard design; customized size, stainless steel fittings & anti-corrosion coating available.
Technical Specification
| Product Name | Marine Hinged Weathertight Or Watertight Door |
| Door Type | Single-leaf hinged, weathertight / watertight optional |
| Standard Clear Opening | 1600×700mm (custom sizes available) |
| Material | Carbon steel / Stainless steel / Aluminum alloy |
| Panel Thickness | 4-8 mm |
| Seal | EPDM continuous rubber gasket |
| Locking System | Multi-point cleats / Handwheel quick closure |
| Hinges | Stainless steel corrosion-resistant hinges |
| Surface Treatment | Marine anti-rust paint; C4 anti-corrosion coating for offshore |
| Standard | ISO 6042, CB/T3477, comply with SOLAS requirements |
| Opening Direction | Left-hand / Right-hand opening optional |
Key Features
● Reliable multi-point compression for stable sealing
● All movable parts stainless steel, anti-salt-spray
● Compact structure, easy installation & maintenance
● Optional window, dead bolt, door stop as request
Application
Offshore wind service vessels, working ships, offshore platforms, accommodation cabins, equipment compartments & deck houses.
